Introduction

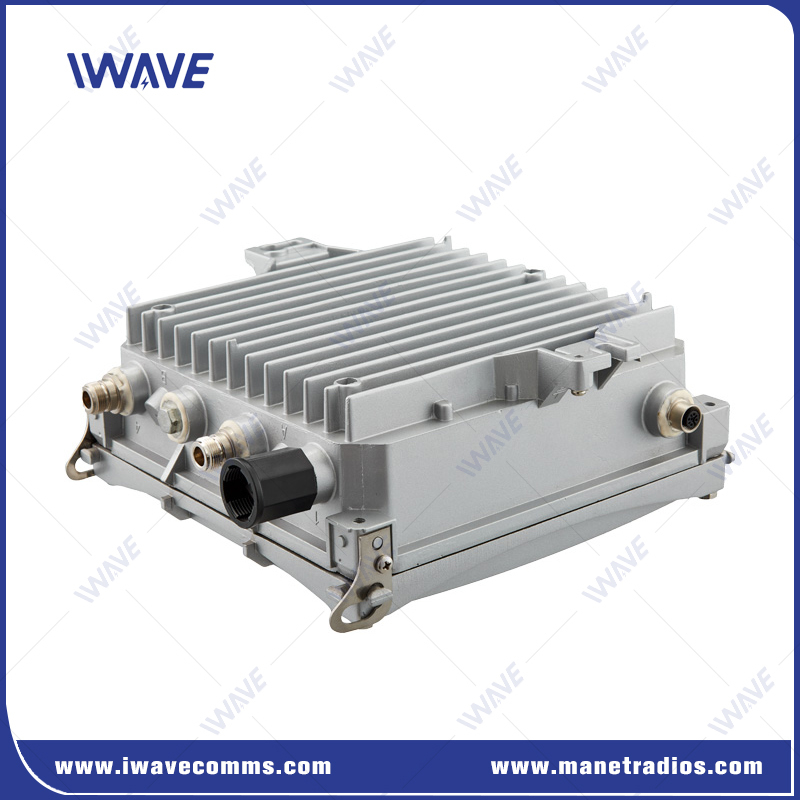

FD-78A5FT is an industrial-grade line-of-sight and non-line-of-sight MESH networking product designed for high performance and exceptional stability. It supports point-to-point, point-to-multipoint, and MESH ad-hoc networking through flexible combinations of directional, omnidirectional, and sector antennas. Built to industrial standards with surge protection, electrostatic resistance, salt spray corrosion resistance, and EMC electromagnetic shielding, it operates reliably in complex electromagnetic environments and under harsh weather conditions, ensuring uninterrupted all-weather performance.

The FD-78A5FT is an ultra-long-range integrated wireless data link system capable of transmitting video, data, and control signals with ultra-low latency and a high degree of integration. It supports simultaneous transmission of multiple data streams and offers both chain and mesh networking modes. Equipped with automatic frequency hopping, the system operates in dual-band modes (600MHz and 1.4GHz), allowing users to switch frequencies via software. It also provides strong anti-interference performance.

Key Features of IP Mesh Dual Bands Outdoor Video Data Transmitter And Receiver For NLOS Communication

Dual-band operation: 600 MHz + 1.4 GHz Data rate of up to 100 Mbps Communication range: LOS: up to 50 km NLOS: 5–10 km Network management software supports frequency selection, RF power adjustment, KEY configuration, and more Compatible with Windows, Linux, and Android operating systems Real-time monitoring of SNR, RSSI, network topology, and inter-node distance Supports up to 32 nodes Full-duplex IP transparent transmission Flexible networking with rapid deployment capability IP67-rated waterproof enclosure Operating temperature range: -40°C to 80°C AES128 encryption for high-level security User-friendly operation and maintenance Configurable bandwidth: 1.4/3/5/10/20/40 MHz FHSS (Frequency Hopping Spread Spectrum) for enhanced anti-jamming performance Retransmission over alternate carriers to prevent data loss under interference Maximum output power: 2×40 dBm

Advantages of 2×2 MIMO 50km Long Range IP Video And Telemetry Data Transmitter And Receiver

1.Dual-Band: UHF 566-678Mhz and L-Band 1420-1530Mhz selectable via network management

The FD-78A5FT is a Software-Defined Radio (SDR) based on IWAVE’s Switchable Frequency Architecture, supporting both the L-band (1420–1530 MHz) and UHF band (566–678 MHz). Users can easily switch between these frequency bands on-site via software, without the need to replace the entire radio or open the housing to exchange internal modules. The process is quick and intuitive, ensuring minimal disruption to mission-critical operations.

With software-defined audio, extreme temperature resilience, and IWAVE’s proprietary waveform technology, the FD-78A5FT stands as an advanced tactical MIMO radio designed for demanding applications in military, law enforcement, and emergency rescue sectors.

2.FD-78A5FT Adaptive Anti-Jamming Radio | Intelligent Frequency Hopping FHSS System

The FD-78A5FT uses advanced Frequency Hopping Spread Spectrum (FHSS) with a proprietary IWAVE algorithm to resist jamming. It continuously monitors RSRP, SNR, and BER to assess link quality. If interference is detected, the system automatically hops to a clearer frequency. Hops occur only when needed—stable links remain unaffected.

This intelligent frequency hopping mechanism ensures reliable communication in noisy or contested environments, making the FD-78A5FT ideal for military, emergency, and secure critical communications.

3.CA(Carrier Aggregation)

FD-78A5FT adopts carrier aggregation technology CA technology, which can aggregate two 20MHz bandwidth carriers together to achieve 40MHz wireless carrier bandwidth, effectively improving the uplink and downlink transmission rates, and enhancing the robustness and environmental adaptability of the entire wireless transmission system. 1. Supports a larger total bandwidth, supports 20MHz+20MHz carrier aggregation, and the data transmission peak rate exceeds 100Mbps. 2. Supports continuous carrier aggregation and non-continuous carrier aggregation, which is more flexible. 3. Supports carrier aggregation of different bandwidths, and can adjust the bandwidth of carrier aggregation  according to environmental interference and available spectrum resources, making it easier to adapt to different scenarios. 4. Retransmit on different carriers to avoid data interruption after a single carrier is interfered. 5. Supports frequency hopping of different carriers to more effectively find interference-free carriers.

Specification of  50km Long Range IP Video And Telemetry Data Transmitter And Receiver

Application

The FD-78A5FT is designed for robust outdoor deployment, supporting both mobile and fixed-site operations across terrestrial, airborne, and maritime environments. It is well-suited for a wide range of applications including border surveillance, mining operations, remote oil and gas exploration, urban backup communication infrastructure, and private microwave networks.
